Fully compatible with Renishaw TP20 probe body, standard force modules, and MCR20 rack. Same performance as TP20, but at 40% lower price. Immediate U.S. shipping, free shipping included, one-year warranty.
Order Now – CF20 TP20 Compatible Module
| Model | Force Type | CF20 Trigger Force | TP20 Trigger Force | CF20 Pre-travel | TP20 Pre-travel | CF20 Repeatability | TP20 Repeatability | Stylus Length |
|---|---|---|---|---|---|---|---|---|

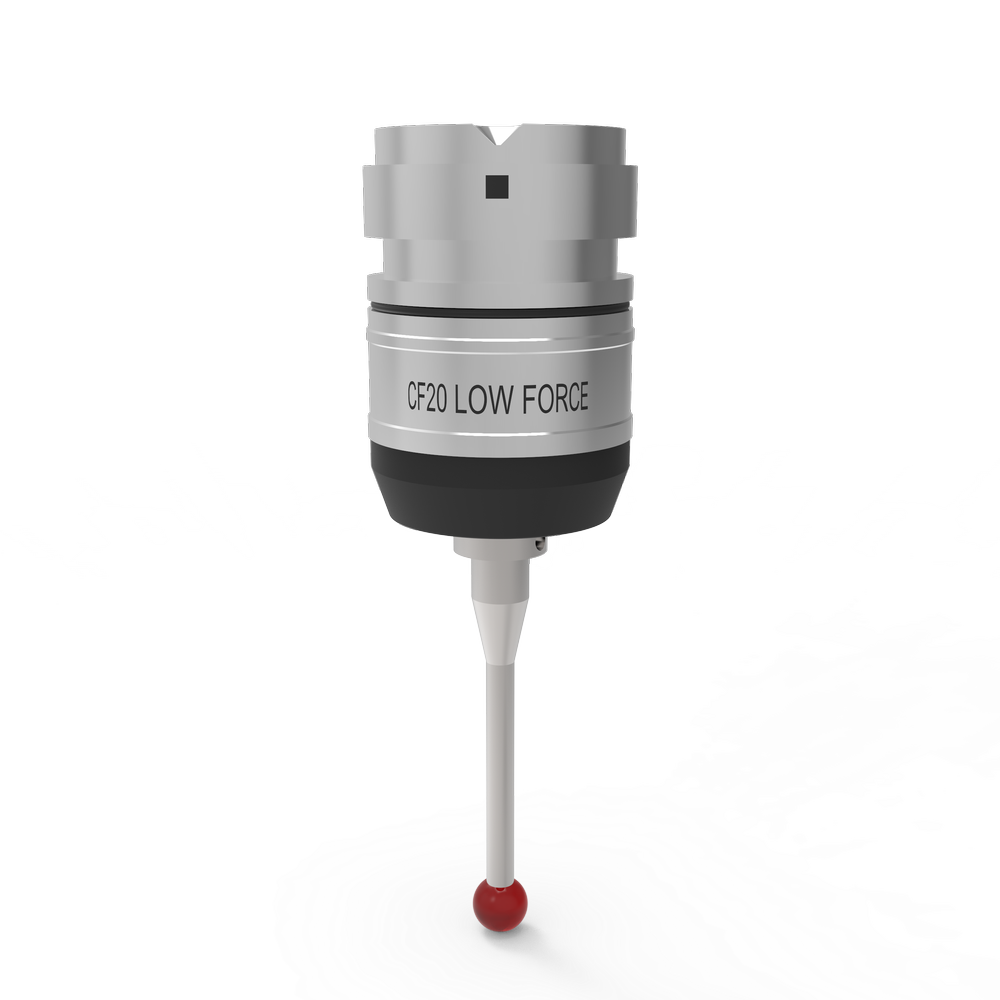

| LF | Low | 0.06N / 0.65N | 0.055N / 0.65N | ±0.7μm | ±0.6μm | ±0.4μm | ±0.35μm | CF:10–50mm / TP:10–30mm |

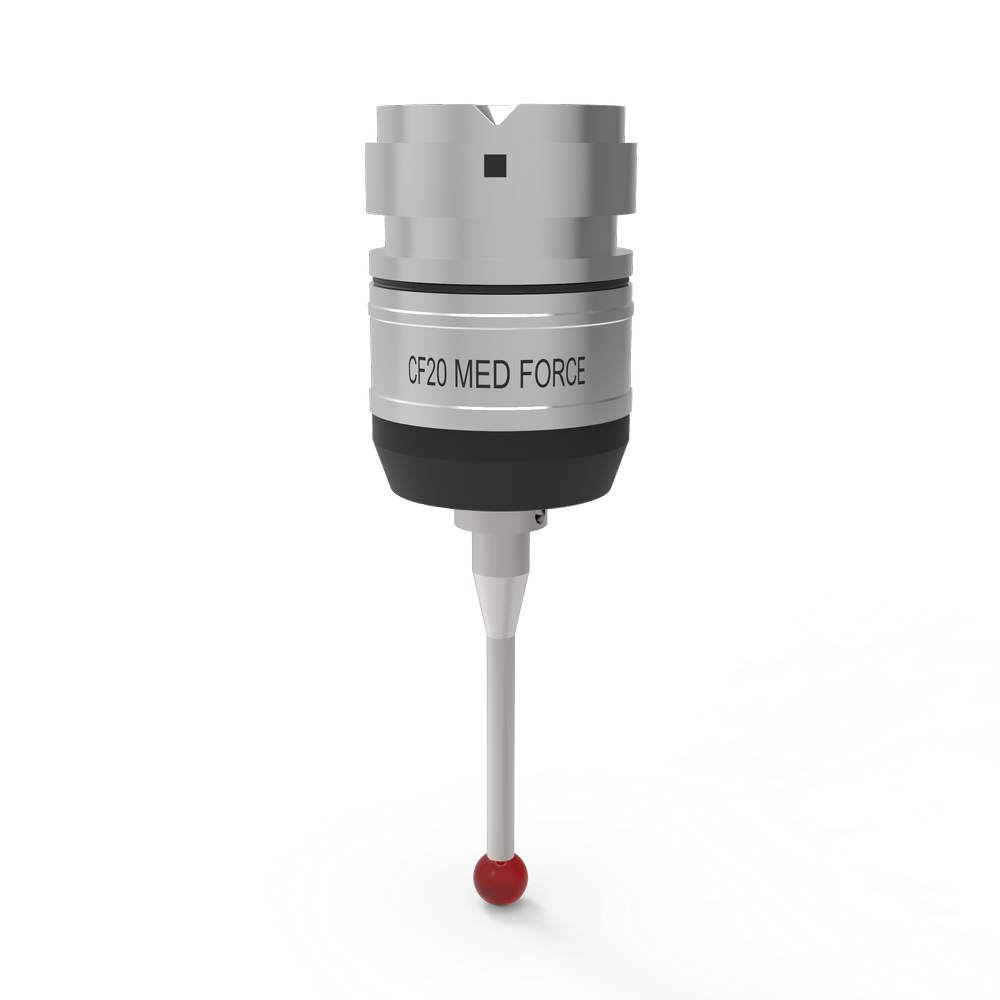

| MF | Medium | 0.10N / 0.90N | 0.10N / 1.9N | ±1.1μm | ±1.00μm | ±0.60μm | ±0.50μm | CF:10–50mm / TP:10–60mm |

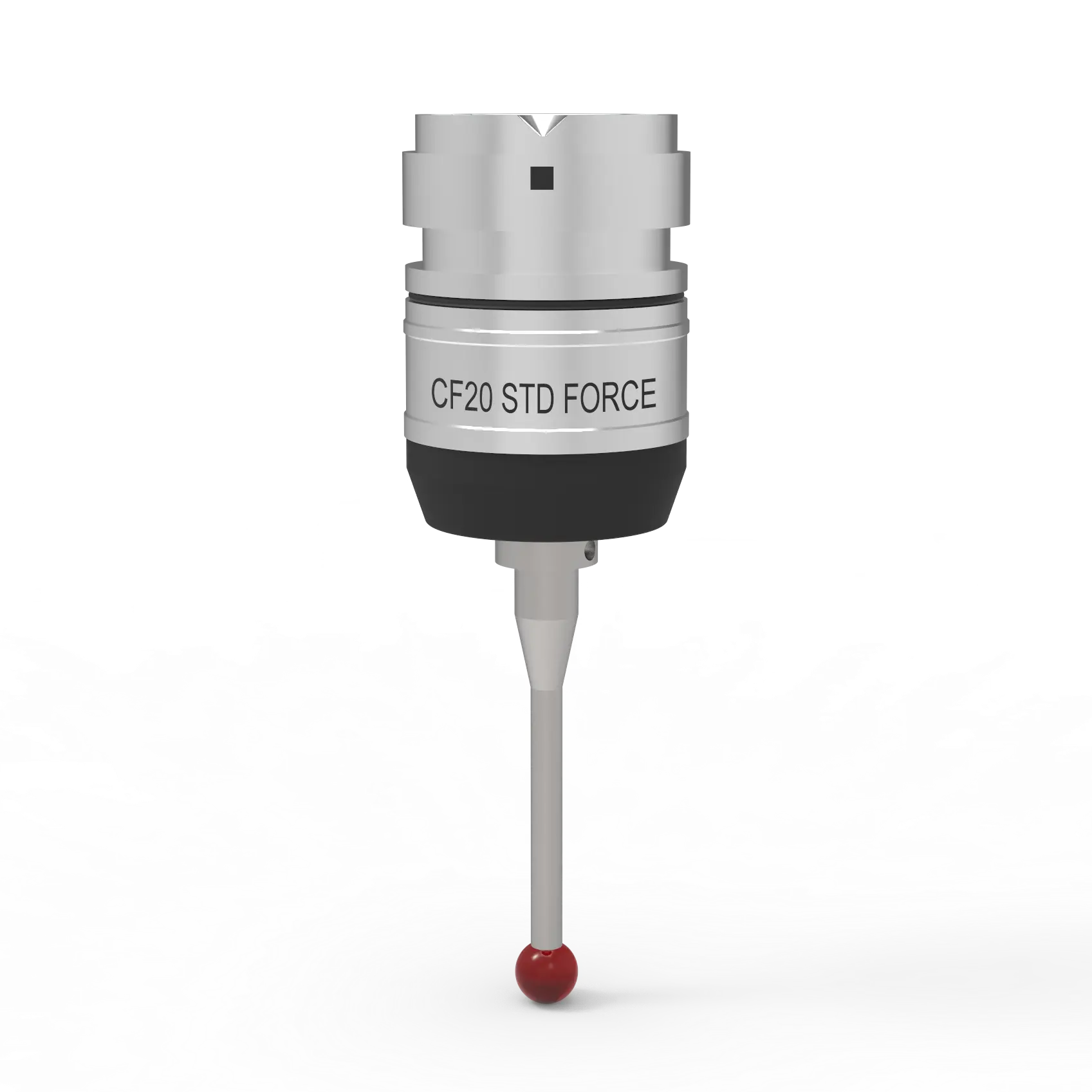

| SF | Standard | 0.08N / 0.75N | 0.08N / 0.75N | ±0.9μm | ±0.80μm | ±0.42μm | ±0.35μm | CF:10–70mm / TP:10–50mm |
| EF | Extended | 0.10N / 3.2N | 0.10N / 3.2N | ±2.2μm | ±2.00μm | ±0.7μm | ±0.65μm | CF:10–50mm / TP:10–60mm |
The CF20 Probe Module is a precision-engineered replacement for the Renishaw TP20 probe system. Designed with full compatibility in mind, the CF20 seamlessly integrates with TP20 probe bodies and MCR20 racks, allowing for fast and accurate stylus changes without recalibration. This makes it an ideal choice for coordinate measuring machines (CMMs) requiring high throughput and cost-effective solutions.
Compared to the original Renishaw TP20 modules, the CF20 offers several key advantages: lower cost (typically 40% less), same magnetic coupling mechanism, and interchangeable trigger force modules (low, medium, standard, extended). The CF20 replacement probe module is not only functionally equivalent to TP20 but is also manufactured with robust mechanical tolerances to ensure consistent measurement accuracy.
Whether you’re upgrading an existing CMM, replacing legacy TP20 units, or building a new inspection station, the CF20 is a proven alternative trusted by quality teams worldwide. It supports a wide range of styli and is fully tested for use in automotive, aerospace, and general manufacturing environments.
